Main page » » plastic housing » » CDN24PT IP65 ABS surface-mounted distribution board 24TE sealable

Preview: CDN24PT IP65 ABS surface-mounted distribution board 24TE sealable

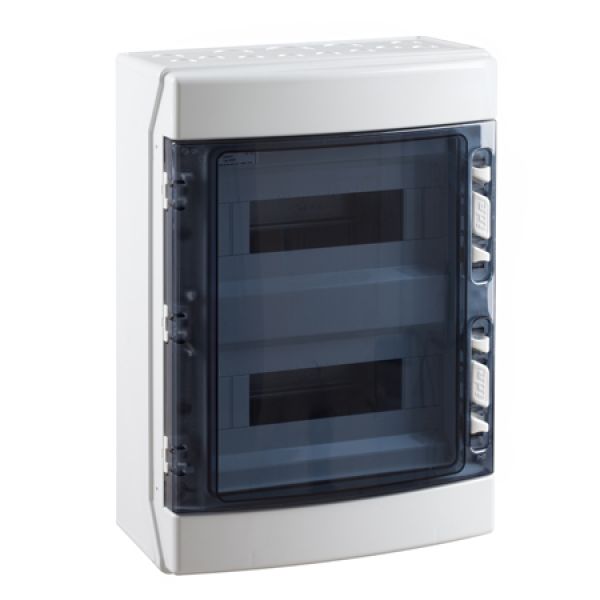

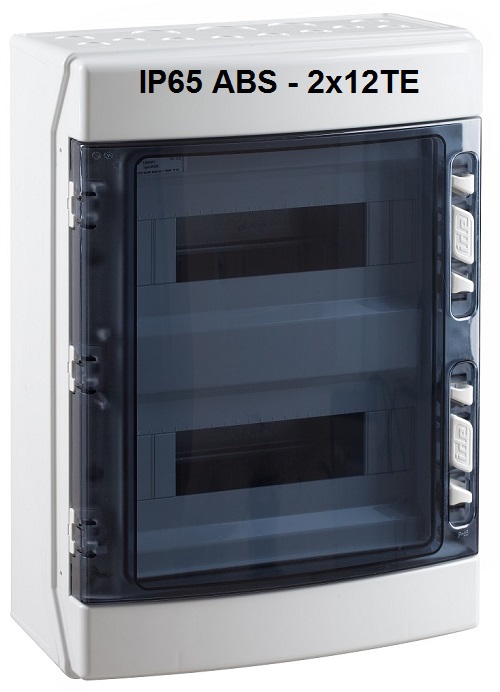

CDN24PT IP65 ABS surface-mounted distribution board 24TE sealable

Mobile Preview: CDN24PT IP65 ABS surface-mounted distribution board 24TE sealable

CDN24PT IP65 ABS surface-mounted distribution board 24TE sealable

Product No.:: APV24PT-VE
Shipping time:: 3-5 days EU - worldwide maybe lo (abroad may vary)
Stock:: 0 pieces
Weight:: 2.4 kg per piece
Minimum order:: 4

This product is not in stock. The quantity entered will be supplied by us very soon.

47,39 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

CDN24PT IP65 surface-mounted damp-proof distribution board 2x 12TE / 24TE made of high-quality ABS plastic material for indoor use,
in areas with high requirements in terms of protection rating and material.

--Degree of protection: IP65.
--Impact resistance: IK08.
--Hot wire test: 650ºC.
--Ball pressure test: 70ºC.
--Environmental temperature range: -25ºC / +40ºC.
--Maximum operating voltage: 1000 V AC/ 1500 VCC.
Halogen-free materials:
-- Body and door: ABS RAL 7035.
-- Inspection door: Polycarbonate.

IP65 / TIPO: 65S24 - 2X12 (24) modules DIN rail.

CABLE ENTRY: Top: 8xM20 + 2xM25 + 2xM32 + 1xM40 /
Bottom: 6xM20 + 2xM25 + 2xM32 + 1xM40 / Inside: 4xM25 /
Long hole: 2xOB25_32_25.

Customer reviews

Unfortunately there are no review yet. Be the first who rate this product.

CDN24PT IP65 ABS surface-mounted distribution board 24TE sealable

CDN24PT IP65 surface-mounted damp-proof distribution board 2x 12TE / 24TE made of high-quality ABS plastic material for indoor use, in areas with high requirements in terms of protection rating and material.

IP65 / TIPO: 65S24 - 2X12 (24) modules DIN rail.

CDN24PT IP65 surface-mounted damp-proof distribution board 2x 12TE / 24TE made of high-quality ABS plastic material for indoor use,
in areas with high requirements in terms of protection rating and material.
