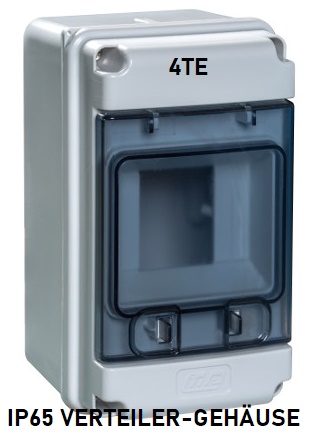

CDN4G AP distributor 1x4TE HS - wet room distributor IP65 sealable - PU
CDN4G IP65 ABS AP Moisture-Resistant Distribution Box, 1-row, 4U, with mounting rail

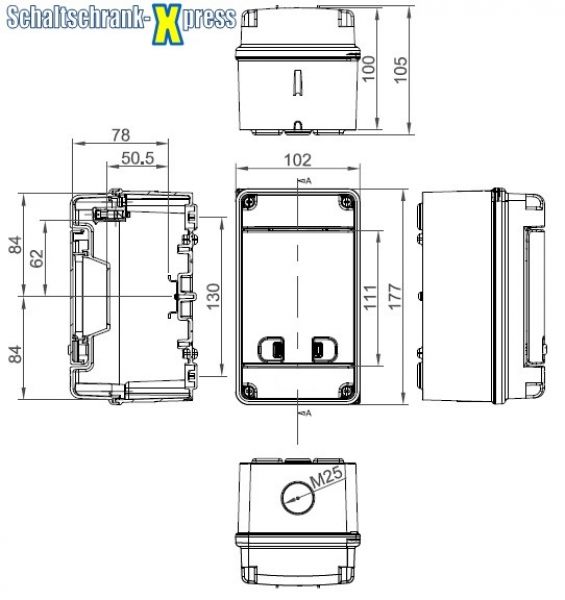

(HBT) 177x102x105 mm
Sealable distribution box made of high-quality ABS plastic. VDE certified.
Temperature resistance: -25 to +40 °C. Enclosure color: light gray RAL7035
with a viewing door made of halogen-free polycarbonate
and with pre-punched cable entries Top: 1xM25

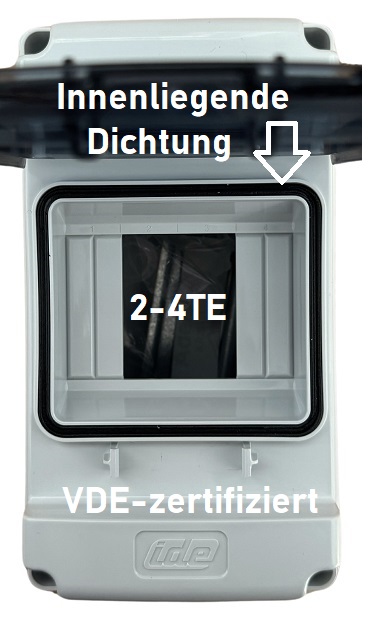

high-quality design with continuous foam inner seal
(HBT) 177x102x105 mm
Sealable distribution box made of high-quality ABS plastic. VDE certified.
Temperature resistance: -25 to +40 °C. Enclosure color: light gray RAL7035
with a viewing door made of halogen-free polycarbonate
and with pre-punched cable entries Top: 1xM25
high-quality design with continuous foam inner seal
Technical Data
| Protection Class | IP65 |
| Impact resistance | IK08 |
| Glow wire resistance | |
| ABS | 650 °C |
| PC | 850 °C |
| Ambient temperature range | -25 ºC / +60 ºC |
| Materials with maximum temperature | 80 ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Protection class II |
Certifications
Compliant with Directive 2014/35/EU.
Standards: UNE-EN 62208 and IEC 62208:2011
Standards: UNE-EN 62208 and IEC 62208:2011
