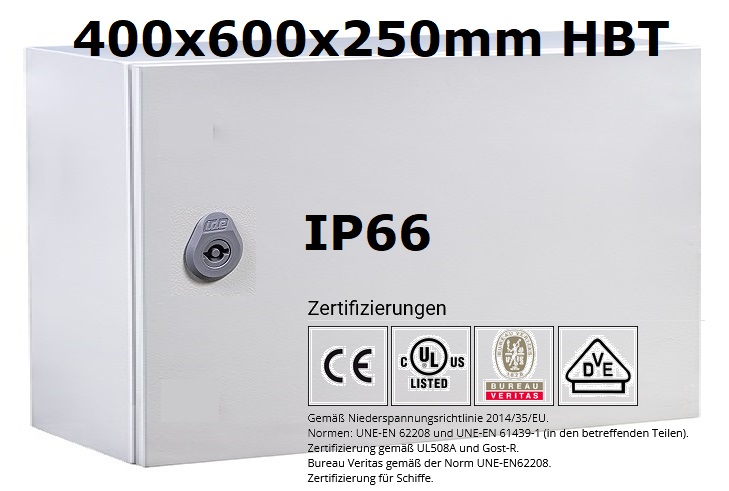

control cabinet 400x600x250 mm HWD VDE UL sheet steel single door IP66 - Kopie
NEW
-20%

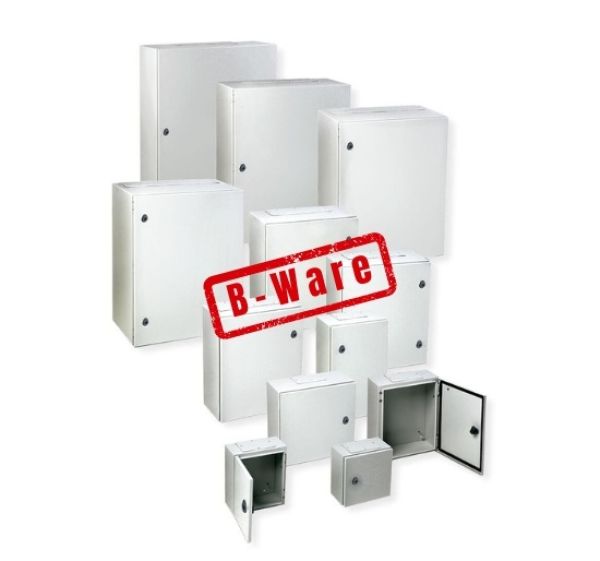

B-stock from returns possibly with minor defects Metal control cabinet 400x600x250 mm HBT IP66 sheet steel wall housing, single door with galvanized mounting plate and grounding strap
Quality control cabinet from the EU in VDE & UL certified industrial quality with fitted standard door,

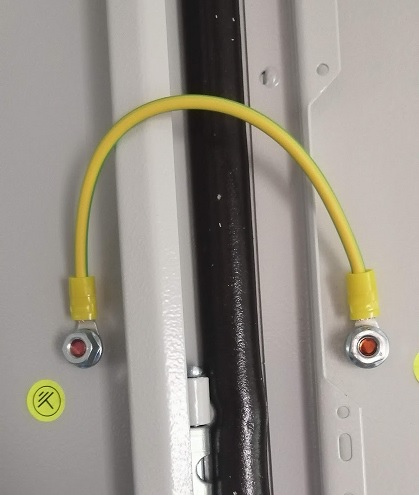

Galvanized mounting plate and grounding strap green/yellow M6/M6, as well as foamed PU seals (instead of loosely enclosed foam) on the door and flange to ensure the protection class is maintained.
The control cabinet wall housings are made of high-quality, cold-rolled sheet steel with a thickness of up to 2 mm
Manufactured and have a hardened surface - powder coating (epoxy-PE) in RAL 7035.
The housings are packed individually and are supplied with a mounting plate and accessories.
Closure 5mm-DIN-DDB (up to a height of 400mm 1 lock, up to a height of 800mm 2 locks,
from 1000mm height 3-point bar closure)

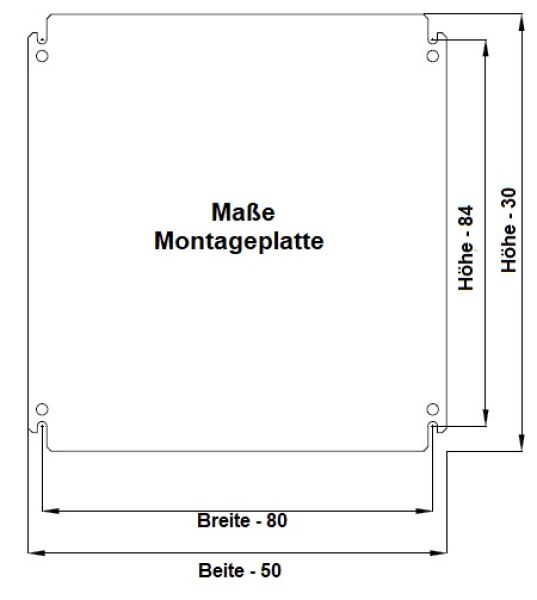

Mounting plates: for housings up to 700 mm high are supplied unassembled, from 800 mm they are mounted in the housing.

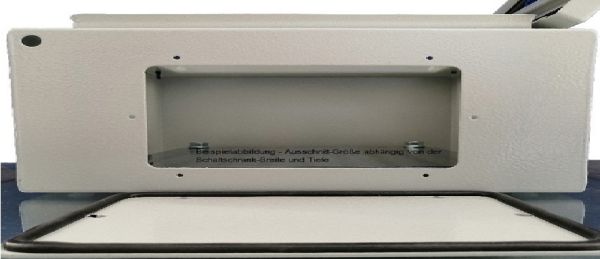

Accessories: 4 sealing plugs, grounding labels, keys, cable gland plate with screws, assembly instructions.
