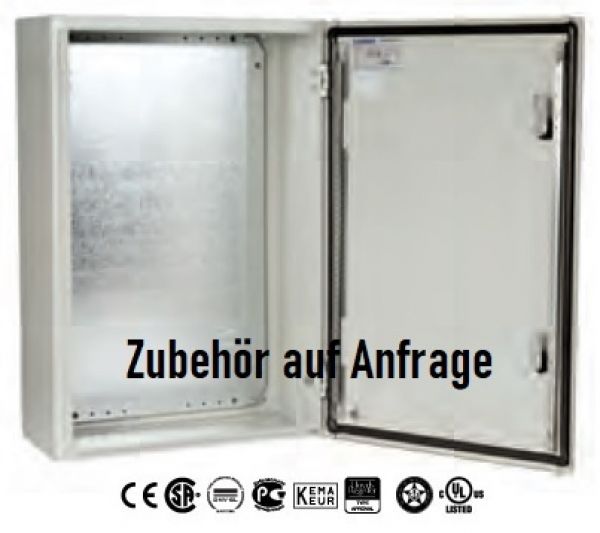

ELDON MAS0606040R5 sheet steel control cabinet 600x600x400 mm HBT IP66 1-door with mounting plate
with galvanized mounting plate and removable flange plate for cable entry
Control cabinet made of sheet steel with protection class IP66
Accessories - ON REQUEST -
Feature: IP 66 TYPE 4, 12, 13 IK 10
Eigenschaften |
|
Hinweis |
Mit Montageplatte |
Höhe |
600 mm |
Breite |
600 mm |
Tiefe |
400 mm |

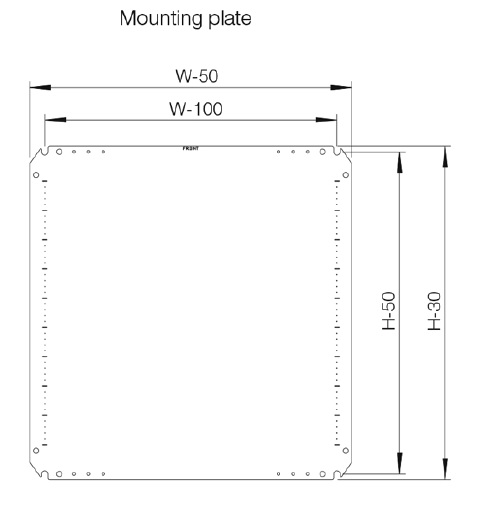

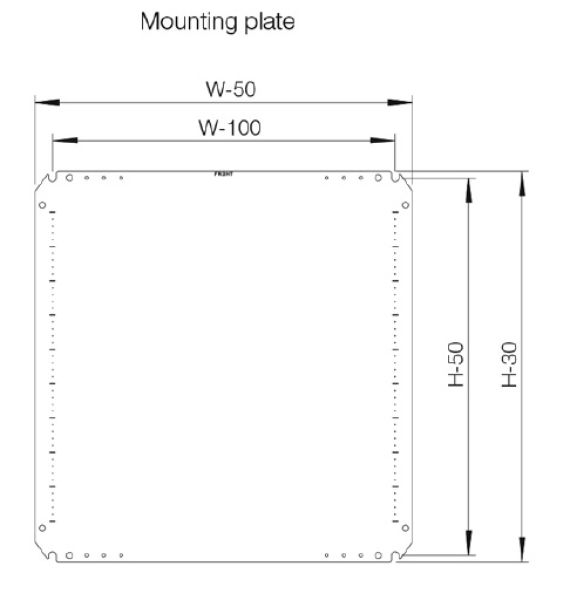

Montageplattenhöhe |
570 mm |
Montageplattenbreite |
550 mm |
Max. nutzbare
Tiefe Gehäuse |
382 mm |

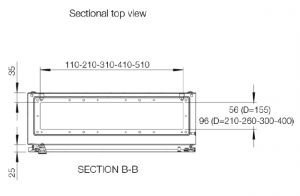

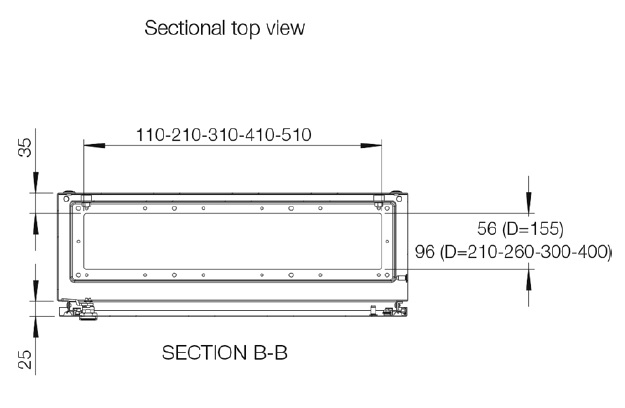

Größe
Flanschöffnung |
510 × 96 mm |
Typ |
4 |
Anzahl
der Flanschöffnungen |
1 |
Nr. Schlösser |
2 |
Gewicht (kg) |
25.10 |
