Product No.:
ELT171
3-5 days EU - worldwide maybe lo 3-5 days EU - worldwide maybe lo (abroad may vary)
Stock:
84 pieces
Weight:
1.01 kg per piece
11,09 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

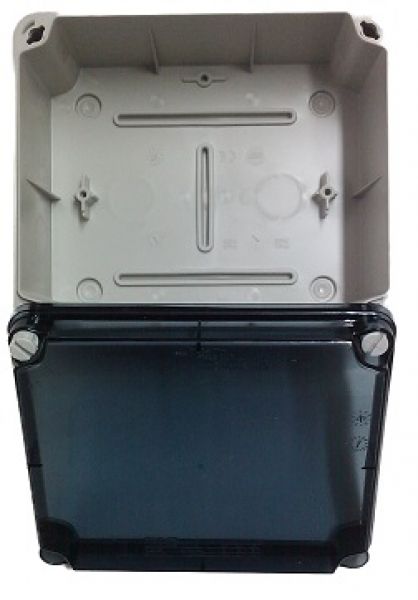

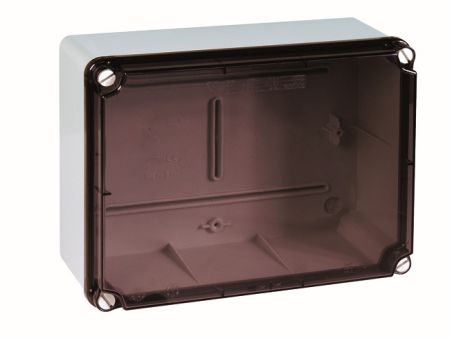

JUNCTION BOX LBT 175x151x95mm with transparent cover and smooth sides

Technical data

Degree of protection IP65-IP67*
Resistance to impact IK07
Glow wire resistance 650 ºC
Ambient temperature range -25 ºC / +40 ºC
Maximum operating voltage 1000 V AC / 1500 V DC
Double insulation Class II
* Except EP048, EP088 and EX088 (IP54) references

Certifications

CE
According to low tension directive 2014/35/EU.
Norm: IEC 60670-22.
