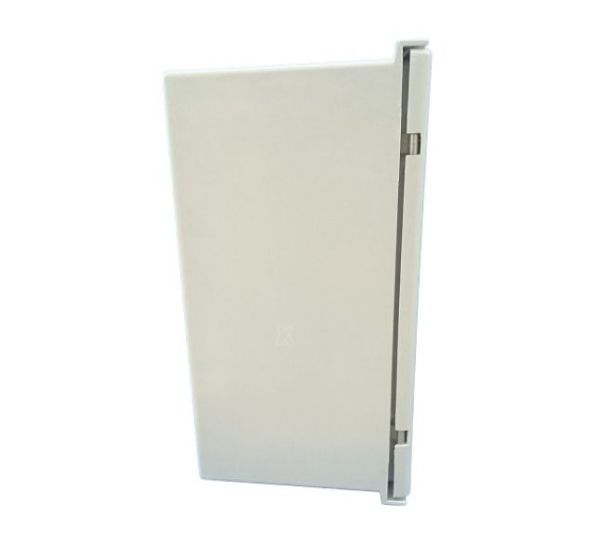

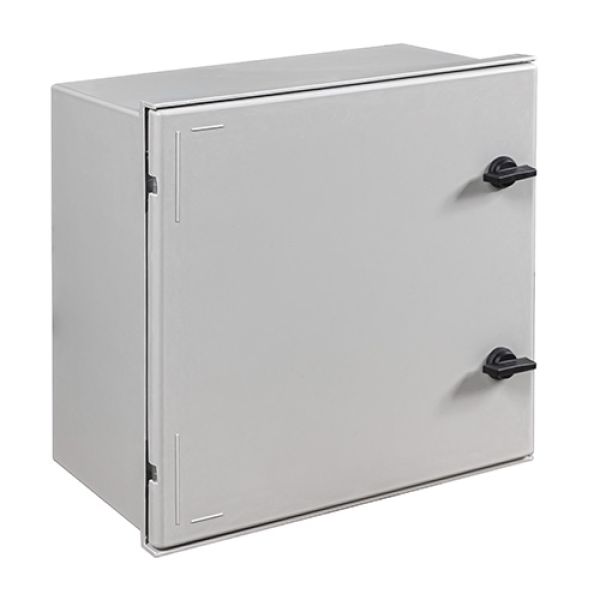

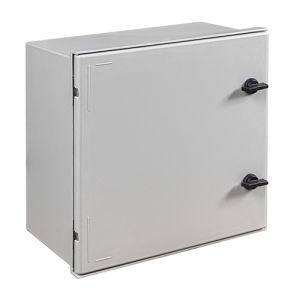

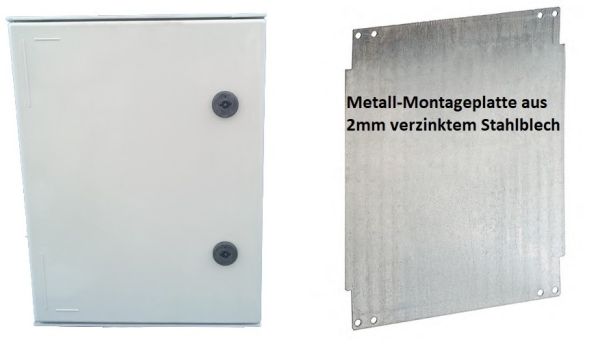

GRP control cabinet 400x400x200mm HBT IP66 plastic outdoor housing
with sheet steel mounting plate
Armoire de commande en PRV 400x400x200mm boîtier extérieur en plastique HBT IP66
avec plaque de montage en tôle d'acier
Armario de control GRP 400x400x200mm HBT IP66 carcasa de plástico para exterior
con placa de montaje de chapa de acero
Polyester control cabinet made of UV-stable glass fiber reinforced plastic, manufactured as a monoblock body
with rain edge and ideally suited as an external housing for long-term outdoor use.
Plastic polyester control cabinet made of hot-pressed and glass reinforced plastic
light gray one-door with DDB lock, manufactured from halogen-free material with high-quality properties and resistance to chemical substances.
(Resistance always depends on the respective concentration and composition of the substances)
The cabinets are symmetrically dimensioned and in many cases reversible, which ensures great versatility in use in electrical,
pneumatic and hydraulic installations as well as for communication systems and the like.

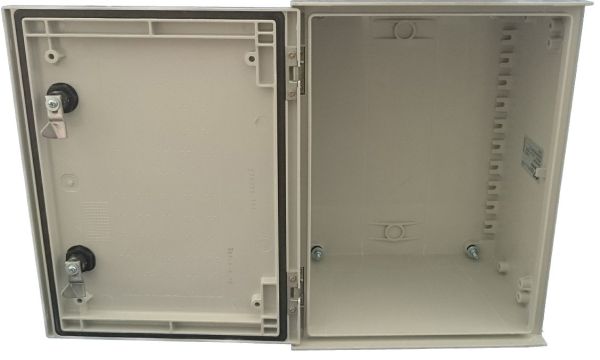

The base of the cabinets is made from a single piece and thus ensures optimal use of space inside and increased impact resistance.
TECHNICAL DATA Value
Protection class IP66
Impact resistance IK10
Glow wire test 960ºC
Thermal class 150ºC
Material Glass fiber reinforced halogen-free polyester
Color RAL 9002
In compliance with Directive 2006/95/CE and standards UNE-EN 62208 Y UNE-EN 60439-1-3 in the relevant parts.
Accessories

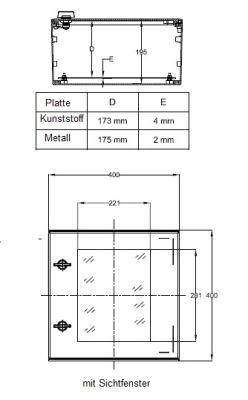

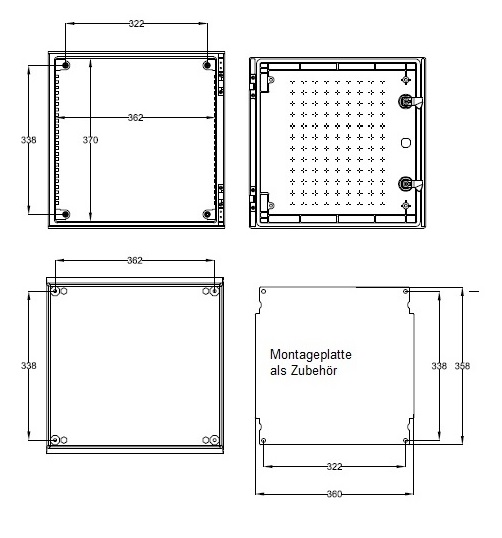

Mounting plate for PWG plastic housing Montageplatte für PWG-Kunststoffgehäuse
4 fixing screws 4 Befestigungsschrauben
Adjustable wall mounting for PWG housing Plastic Wandbefestigung justierbar für PWG-Gehäuse

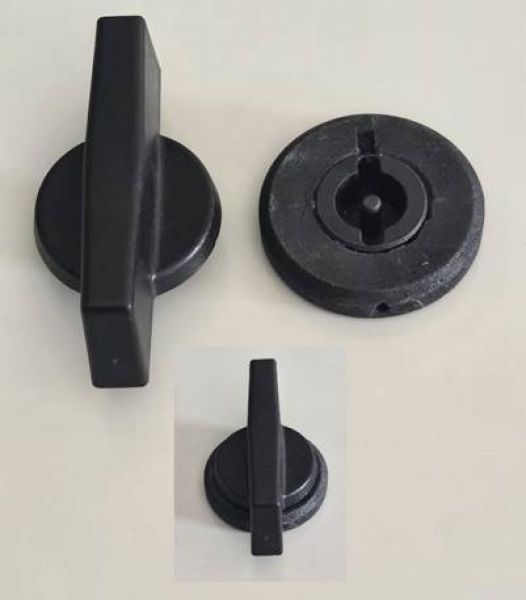

T-handle with key lock Kunststoff-Knebelgriff mit Schlüsselschließung
Description:
Product type: Polyester wall enclosure

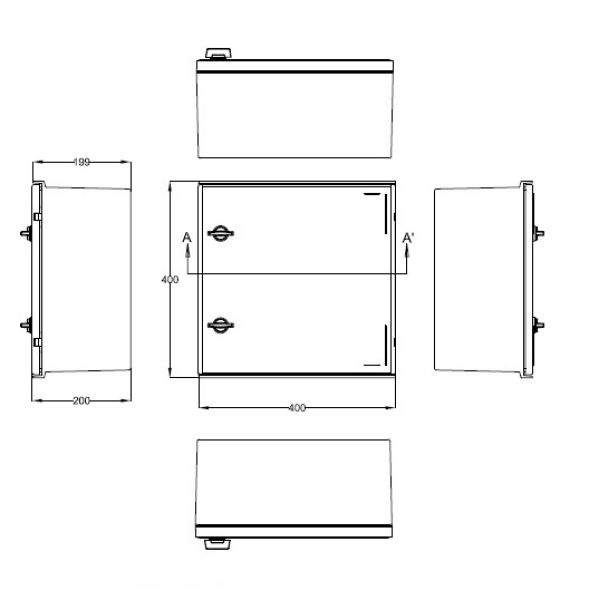

External dimensions: (AxBxC) 400x400x200 mm
Installation: Surface-mounted
Door type: Single opaque door
Lock: DIN lock with double bit 3 mm
Coating: Double insulation: Protection class II
Color: RAL 7035
Mounting plate: Without mounting plate
Weight (kg): 4.6
Materials: Glass fiber reinforced polyester
Thickness: Housing 2.8 mm. Door: 2.8 mm.
Foamed seal: Glass fiber reinforced polyester
Door material: Foamed polyurethane seal
Maximum load capacity:
Housing Maximum load: 32 kg
Mounting plate Maximum load: 26 kg
Door Maximum load: 5 kg
