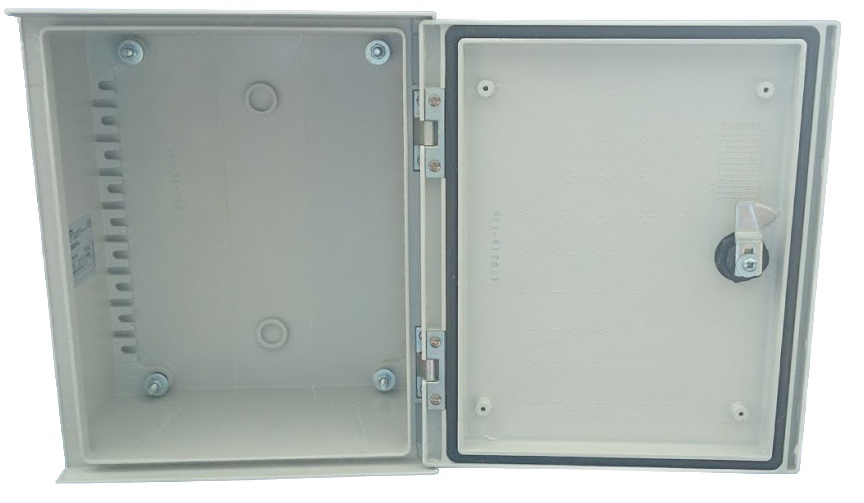

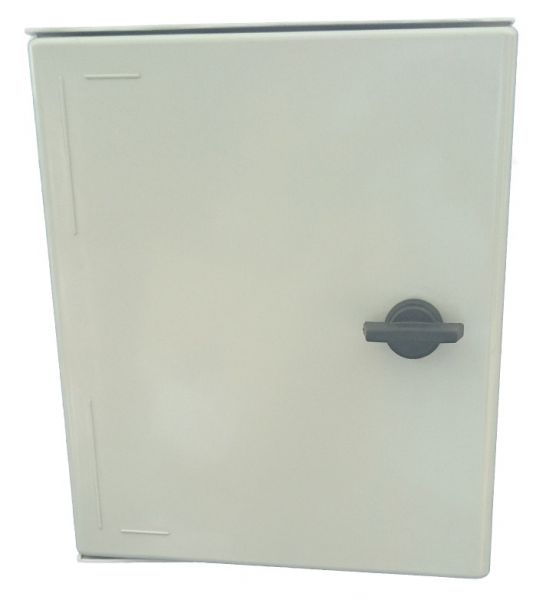

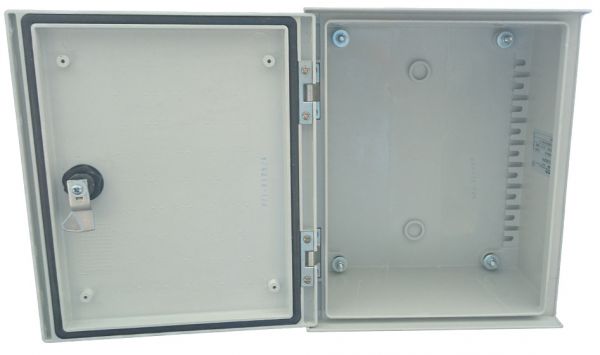

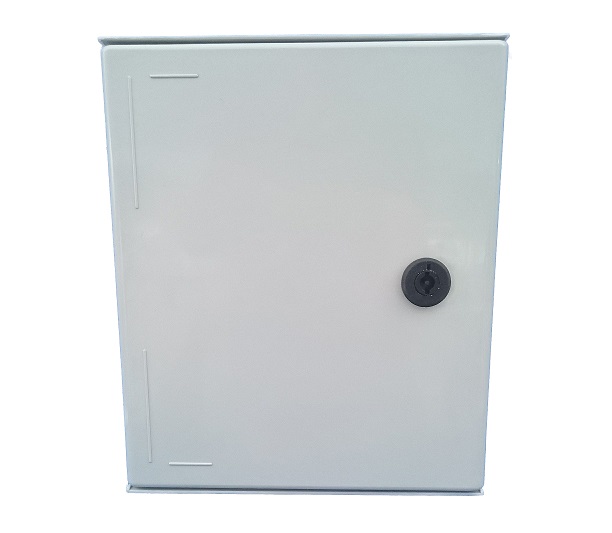

GRP polyester housing 300x250x140mm (HWD) IP66 plastic control cabinet light gray 1-door
IP66 plastic housing 300x250x140 mm HBT GRP wall control cabinet standard RAL 7035
Polyester control cabinet made of glass fiber reinforced plastic, perfect as an outdoor housing

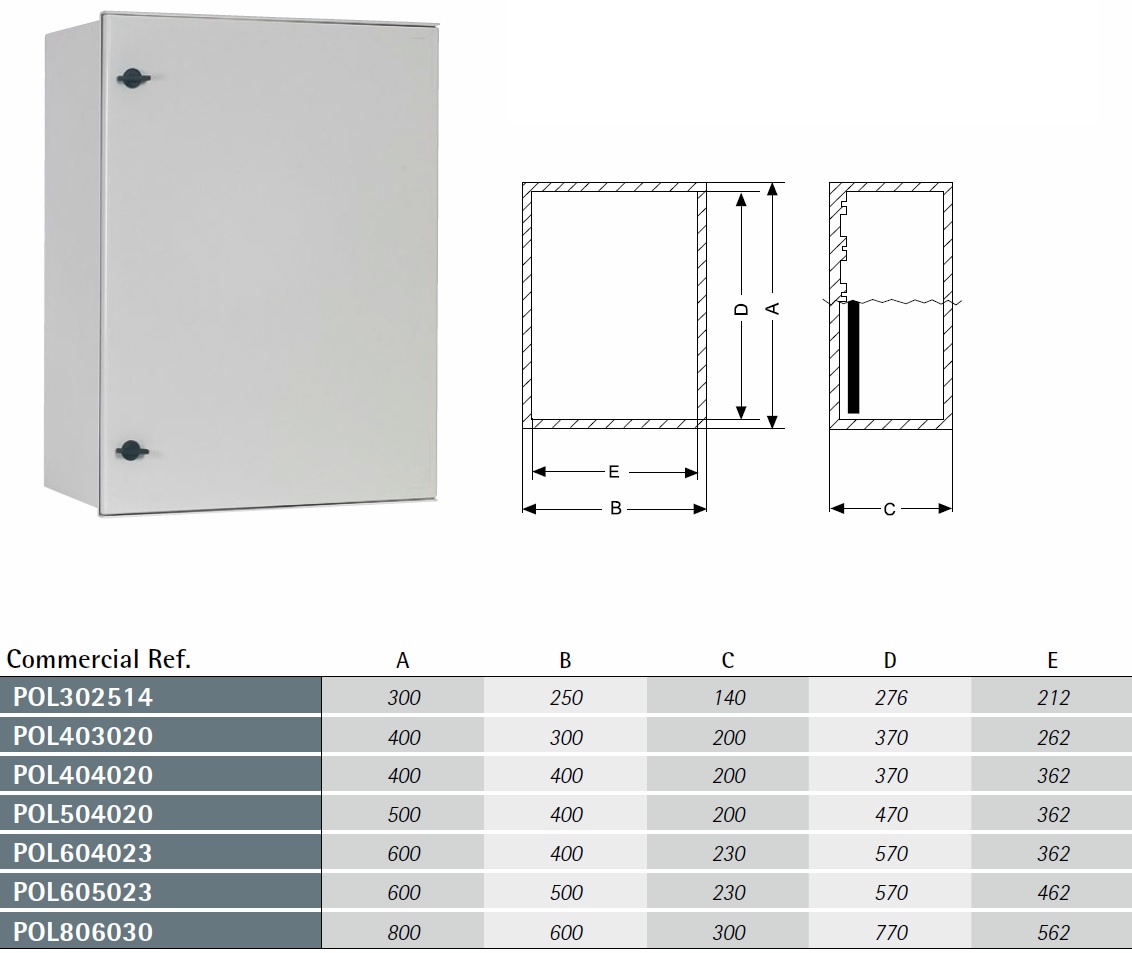

Polyester 66 series - Protection level IP66 - Monoblock body available in 7 different sizes
Color gray RAL7035
The cabinets are symmetrically dimensioned and in many cases reversible, which ensures great versatility in use in electrical,
pneumatic and hydraulic installations as well as for communication systems and the like.
The base of the cabinets is made from a single piece, ensuring optimal use of space inside and increased impact resistance.
Polyester control cabinet made of glass fiber reinforced plastic, perfect as an outdoor housing
Polyester 66 series - Protection level IP66 - Monoblock body available in 7 different sizes
Color gray RAL7035
The cabinets are symmetrically dimensioned and in many cases reversible, which ensures great versatility in use in electrical,
pneumatic and hydraulic installations as well as for communication systems and the like.
The base of the cabinets is made from a single piece, ensuring optimal use of space inside and increased impact resistance.
Technical data
| Degree of protection | |
| Cabinets from a height of 300 mm to 800 mm | IP66 |
| Resistance to impact | |
| Opaque door | IK10 |
| Transparent door | IK08 |
| Ambient temperature range | -30 ºC / +60 ºC |
| Test of resistance to glow wire | 960 ºC |
| Thermal class | 150 ºC |
| Maximum rated operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
Certifications
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1-3 (in the affected part).
