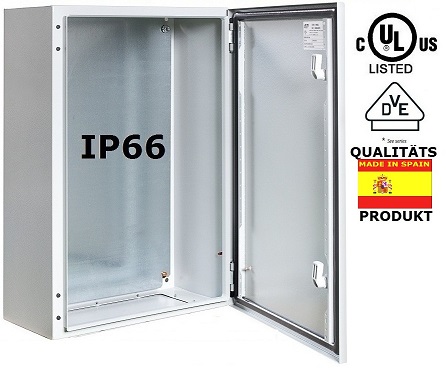

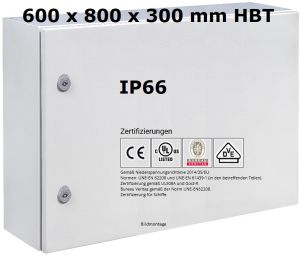

Mild Steel Wall Mounting Enlosure 600x800x300 mm HBT 1-door IP66 with steel mouting plate and earth strap
metal control cabinet IP66 sheet steel wall housing 1-door with galvanized mounting plate and grounding strap
Quality control cabinet from the EU in VDE & UL certified industrial quality with mounted standard door,

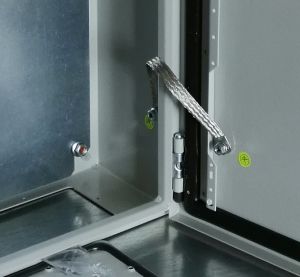

galvanized mounting plate and grounding strap green/yellow M6/M6, as well as foamed PU seals (instead of loose foam) on the door and flange to ensure the protection class is maintained.
Packed in environmentally friendly & reusable cardboard packaging without unnecessary, complex and outdated foil packaging

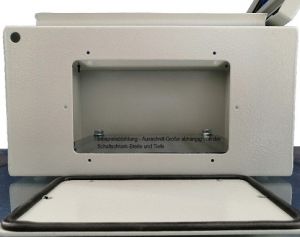

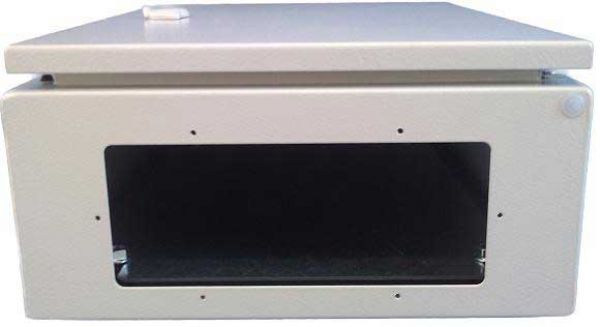

Ready-to-use door with mounted 5mm DIN double-bit lock, easily removable mounting plate and flange plate(s) with foamed PU seal for secure installation
Sheet steel wall switch cabinet with galvanized mounting plate and grounding strap Technical data Protection class: 1-door IP66 NEMA 1,12,4 / 2-door IP55 NEMA 1, 12 / stackable IP54
Impact resistance up to IK10
Ambient temperature range -25ºC / +60ºC
Maximum rated operating voltage 1000 V AC / 1500 V DC
Certifications
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).
Certificate UL508A.
Bureau Veritas under norms UNE-EN 62208:2003 and UNE-EN 60529 (only for single door cabinets).
Bestellung NUR mit GEWERBLICHEM Kundenkonto möglich!
only for commercial customers
