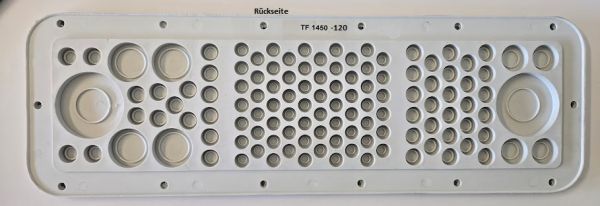

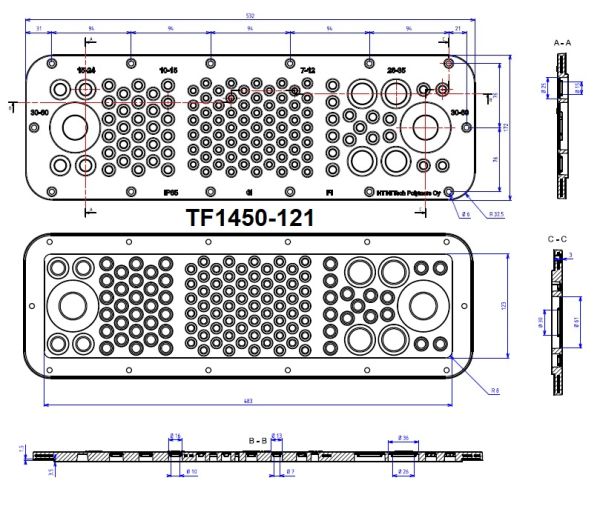

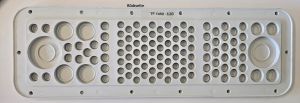

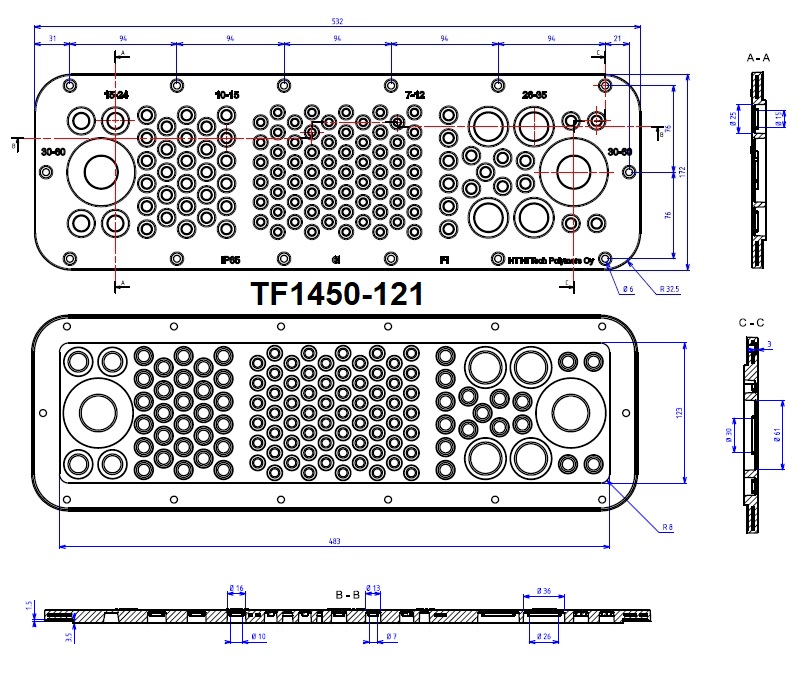

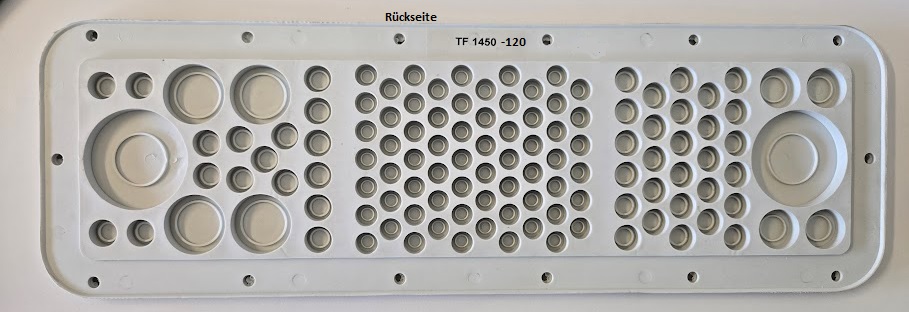

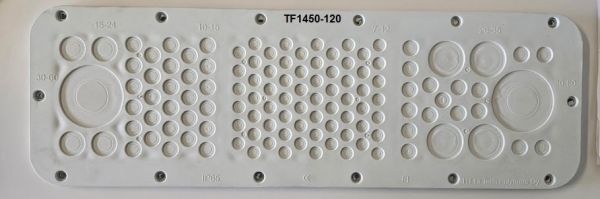

Suitable for opening Argenta centers, fixing holes 6 mm 14 pcs, flange size
117 mm x 532 mm, center opening size 123 x 483 mm, IP class IP65,
Halogen free material TPE-SEBS,
operating temperature -40 +100 C,
Bushing points:
65 x 7 mm - 12 mm
45 x 10 mm - 15 mm
4 x 15 mm - 24 mm
4 x 26 mm - 35 mm
2 x 30 mm - 60 mm
| Item No. |
Version |
dimensions (HWD) |
Flange size (WxL) |
| SWG0406020 |
1-door |
400x600x200 |
125x485 |
| SWG0406025 |
1-door |
400x600x250 |
125x485 |
| SWG0406030 |
1-door |
400x600x300 |
125x485 |
| SWG05007020 |
1-door |
500x700x200 |
125x485 |
| SWG06006020 |
1-door |
600x600x200 |
125x485 |
| SWG06006025 |
1-door |
600x600x250 |
125x485 |
| SWG06006030 |
1-door |
600x600x300 |
125x485 |
| SWG06006040 |
1-door |
600x600x400 |
125x485 |
| SWG06012030-2 |
DoubleDoor |
600x1200x300 |
2x(125x485) |
| SWG08006020 |
1-door |
800x600x200 |
125x485 |
| SWG08006025 |
1-door |
800x600x250 |
125x485 |
| SWG08006030 |
1-door |
800x600x300 |
125x485 |
| SWG08006040 |
1-door |
800x600x400 |
125x485 |
| SWG10006025 |
1-door |
1000x600x250 |
125x485 |
| SWG10006030 |
1-door |
1000x600x300 |
125x485 |
| SWG10006040 |
1-door |
1000x600x400 |
125x485 |
| SWG12006025 |
1-door |
1200x600x250 |
125x485 |
| SWG12006030 |
1-door |
1200x600x300 |
125x485 |
| SWG12006040 |
1-door |
1200x600x400 |
125x485 |
| SWG12012025 |
1-door |
1200x1200x250 |
2x(125x485) |
| SWG08012030-2 |
2-door |
800x1200x300 |
2x(125x485) |
| SWG08012040-2 |
2-door |
800x1200x400 |
2x(125x485) |
| SWG10012030-2 |
2-door |
1000x1200x300 |
2x(125x485) |
| SWG10012040-2 |
2-door |
1000x1200x400 |
2x(125x485) |
| SWG12012025-2 |
2-door |
1200x1200x250 |
2x(125x485) |
| SWG12012030-2 |
2-door |
1200x1200x300 |
2x(125x485) |
| SWG12012040-2 |
2-door |
1200x1200x400 |
2x(125x485) |
| SWG14010030-2 |
2-door |
1400x1000x300 |
2x(125x485) |
| SWG14010040-2 |
2-door |
1400x1000x400 |
2x(125x485) |
| SWG14012040-2 |
2-door |
1400x1200x400 |
2x(125x485) |
.
