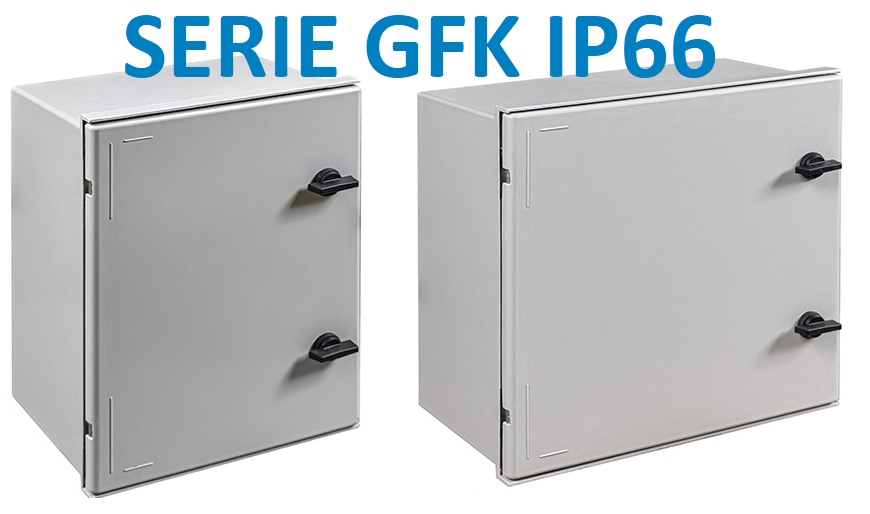

IP66 GRP polyester enclosure, glass-fiber-reinforced plastic, light gray, 1-door
IP66 GRP polyester enclosure, glass-fiber-reinforced plastic, light gray, 1-door

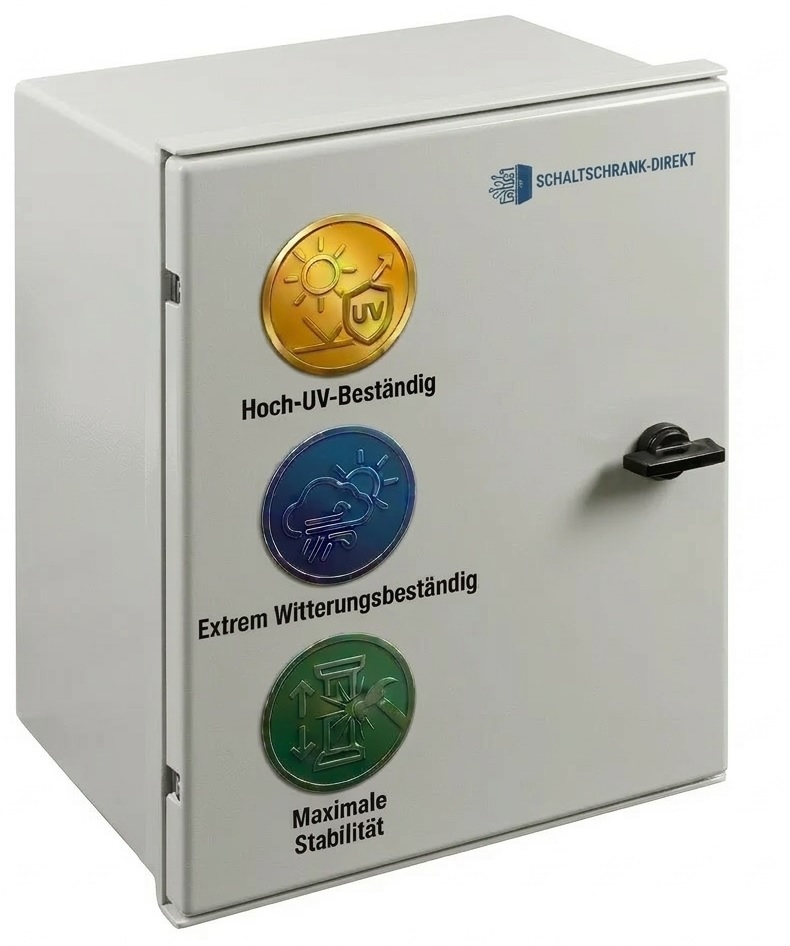

Polyester control cabinet made of UV-stable and glass fiber reinforced plastic, manufactured as a monoblock body with rain edge Long-lasting GRP housings, e.g. as protection for wall boxes or for outdoor networks, solar systems, photovoltaic systems, as well as for coastal use, in sea or salt water environments in marinas or in the chemical industry.
Plastic polyester control cabinet made of hot-pressed and glass-reinforced plastic light gray single door with DDB lock, manufactured from halogen-free material with high-quality properties and resistance to chemical substances.
(Resistance always depends on the respective concentration and composition of the substances)
The cabinets are symmetrically dimensioned and reversible (not with 3-point locking), which ensures great versatility in use in electrical, pneumatic, and hydraulic installations, as well as for communication systems and the like.
The base of the cabinets is made from a single piece, ensuring optimal use of space inside and increased impact resistance.
Scope of delivery: Housing with 1 key
| TECHNICAL DATA |
Wert |
| degree of protection |
IP66 |
| impact resistance |
IK10 |
| glow wire test |
960ºC |
| Thermal Class |
150ºC |
| Material |
Glass fiber reinforced halogen-free polyester
|
| Color |
Refinishing Automotive Paint |
| In accordance with Directives 2006/95/EC and standards UNE-EN 62208 and UNE-EN 60439-1-3 in the relevant parts. |
accessories
Adjustable wall mount for PWG enclosure
Larger versions with depths of 300/420 mm via the following link
Available sizes and designs
PWG0321 IP66 plastic GRP wall control cabinet 300x250x140 mm HBT standard RAL 7035
PWG0321-ST IP66 plastic GRP wall control cabinet 300x250x140 mm HBT with visible door
PWG0432 IP66 plastic GRP wall control cabinet 400x300x200 mm HBT standard RAL 7035
PWG0432-3P IP66 plastic GRP wall control cabinet 400x300x200 mm HBT with swivel lever handle
PWG0432-3P-OS IP66 plastic GRP wall control cabinet 400x300x200 mm HBT with swivel lever handle for PHZ
PWG0432-ST IP66 plastic GRP wall control cabinet 400x300x200 mm HBT with visible door
PWG0432-3P-ST IP66 plastic GRP wall control cabinet 400x300x200 mm HBT viewing door with swivel lever handle for PHZ
PWG0442 IP66 plastic GRP wall control cabinet 400x400x200 mm HBT standard RAL 7035
PWG0442-3P IP66 plastic GRP wall control cabinet 400x400x200 mm HBT with swivel lever handle
PWG0442-3P-OS IP66 plastic GRP wall control cabinet 400x400x200 mm HBT with swivel lever handle for PHZ
PWG0442-ST IP66 plastic GRP wall control cabinet 400x400x200 mm HBT with visible door
PWG0442-3P-ST IP66 plastic GRP wall control cabinet 400x400x200 mm HBT viewing door with swivel lever handle for PHZ
PWG0542 IP66 plastic GRP wall control cabinet 500x400x200 mm HBT standard RAL 7035
PWG0542-3P IP66 plastic GRP wall control cabinet 500x400x200 mm HBT with swivel lever handle
PWG0542-3P-OS IP66 plastic GRP wall control cabinet 500x400x200 mm HBT with swivel lever handle for PHZ
PWG0542-ST IP66 plastic GRP wall control cabinet 500x400x200 mm HBT with visible door
PWG0542-3P-ST IP66 plastic GRP wall control cabinet 500x400x200 mm HBT viewing door with swivel lever handle for PHZ
PWG0642 IP66 plastic GRP wall control cabinet 600x400x230 mm HBT standard RAL 7035
PWG0642-3P IP66 plastic GRP wall control cabinet 600x400x230 mm HBT with swivel lever handle
PWG0642-3P-OS IP66 plastic GRP wall control cabinet 600x400x230 mm HBT with swivel lever handle for PHZ
PWG0642-ST IP66 plastic GRP wall control cabinet 600x400x230 mm HBT with visible door
PWG0642-3P-ST IP66 plastic GRP wall control cabinet 600x400x230 mm HBT viewing door with swivel lever handle for PHZ
PWG0652 IP66 plastic GRP wall control cabinet 600x500x230 mm HBT standard RAL 7035
PWG0652-3P IP66 plastic GRP wall control cabinet 600x500x230 mm HBT with swivel lever handle
PWG0652-3P-OS IP66 plastic GRP wall control cabinet 600x500x230 mm HBT with swivel lever handle for PHZ
PWG0652-ST IP66 plastic GRP wall control cabinet 600x500x230 mm HBT with visible door
PWG0652-3P-ST IP66 plastic GRP wall control cabinet 600x500x230 mm HBT viewing door with swivel lever handle for PHZ
PWG0683-3P-OS IP66 plastic GRP wall control cabinet 600x800x300 mm HBT with swivel lever handle for PHZ
PWG0683-3P-ST IP66 plastic GRP wall control cabinet 600x800x300 mm HBT viewing door with swivel lever handle for PHZ
PWG0863 IP66 plastic GRP wall control cabinet 800x600x300 mm HBT standard RAL 7035
PWG0863-3P IP66 plastic GRP wall control cabinet 800x600x300 mm HBT with swivel lever handle
PWG0863-3P-OS IP66 plastic GRP wall control cabinet 800x600x300 mm HBT with swivel lever handle for PHZ
PWG0863-ST IP66 plastic GRP wall control cabinet 800x600x300 mm HBT with visible door
PWG0863-3P-ST IP66 plastic GRP wall control cabinet 800x600x300 mm HBT viewing door with swivel lever handle for PHZ
PWG0813 IP66 GRP control cabinet 800x1000x300 mm HBT
PWG1083 IP66 GRP control cabinet 1000x800x300 mm HBT
