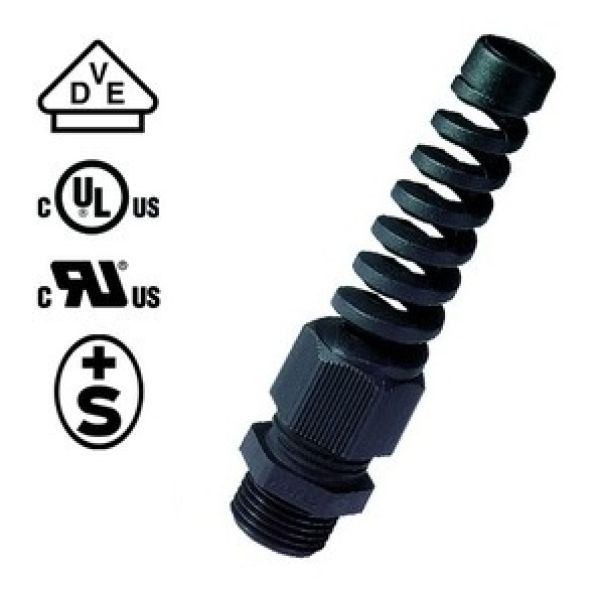

high-quality polyamide cable gland made of PA6 with anti-kink/bending protection spiral
for moveable, flexible cables with integrated strain relief
Large sealing and clamping area, easy to assemble
Temperature range -20°C / +100°C
Degree of protection IP68 - 5 bar
Test standard EN 50262 / UL 514B

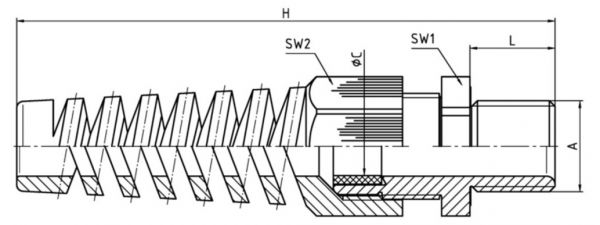

Connection thread standard length |
|
|
|
|
|
|
|
|
|
|
|
A |
Klemmbereich Ø
von-bis |
L |
SW1 |
SW2 |
H |
Standard-VE |
|
mm |
mm |
mm |
mm |
mm |
Stück |
M12x1,5 |
3 - 6,5 |
8 |
15 |
15 |
63,5 |
100 |
M16x1,5 |
5 -10 |
15 |
22 |
22 |
94,5 |
100 |
M20x1,5 |
6 -12 |
11 |
24 |
24 |
102 |
50 |
M20x1,5 |
10-14 |
15 |
27 |
27 |
116 |
50 |
M25x1,5 |
13 - 18 |
15 |
33 |
33 |
133 |
25 |
