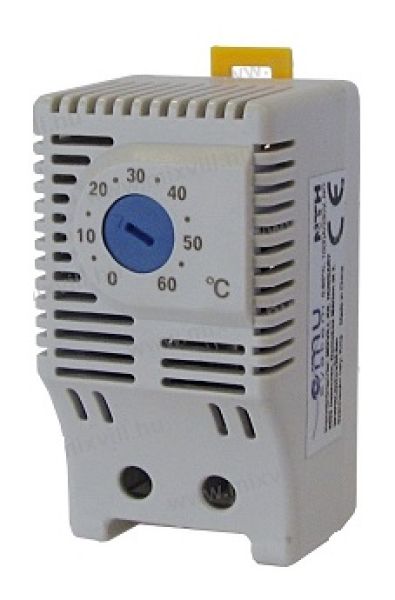

blue THERMOSTAT NO (normally open) for controlling filter fans for DIN rail mounting
Accesory type: THERMOSTAT NO (normally open) for Cooling
Dimensions: 60x33x43 mm. Mounting: Clip for 35mm DIN rail.
Materials: Plastic according to UL94 V0
Colour: Light grey
Technical data:
Max. switching capacity:
250 AC 10 (2) A, 120 AC 15 (2)A - 30 W DC (24-72 V)
Switch temperature difference: 7K (±4K tolerance).
Connection: 2-pole terminal. Clamping torque 0.5 Nm max.: rigid wire
2.5 mm², stranded wire 1.5 mm².
Temperature range: 0 ºC / 60 ºC.
Service temperature: -20 ºC / +80 ºC.
Service: > 100.000 cycles.
Thermostatic bimetal sensor.
Snap-action contact and resistance < 10 m ohm

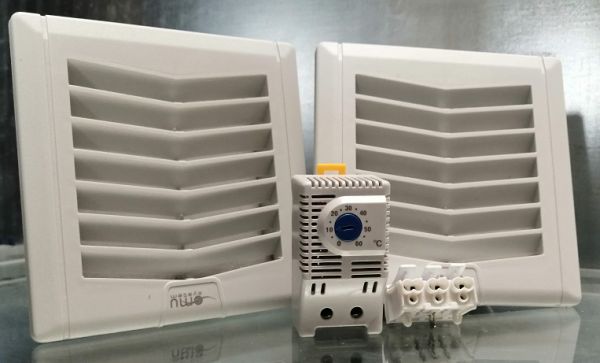

special offer - particularly inexpensive in a set with filter fan SFR
24V 60 m³/h DC 93x93/117x117mm
230V 34/42 m³/h 93x93/117x117mm
24V 113 m³/h DC 124x124 / 149x149mm
230V 92/107 m³/h 124x124 / 149x149mm
