Wall distributor 41243 with 3x230V + 1x32A + 1x16A sockets pre-wired

Product No.:
178M-41243
1-3 Tage/days 1-3 Tage/days (abroad may vary)
Stock:
1 pieces
Weight:
1.5 kg per piece
84,25 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

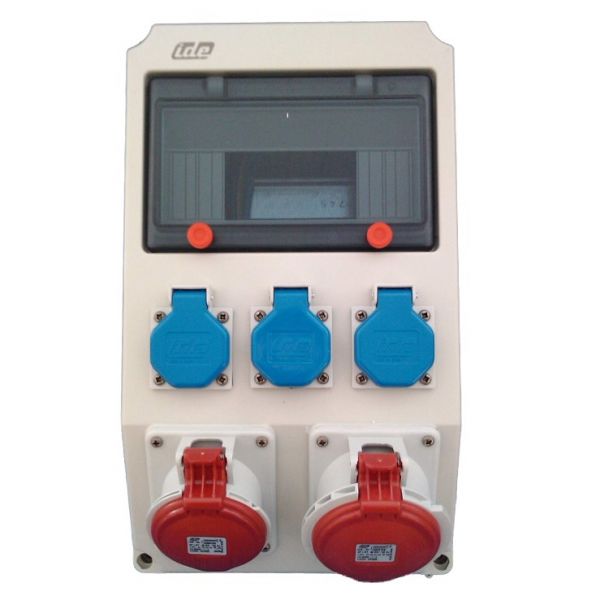

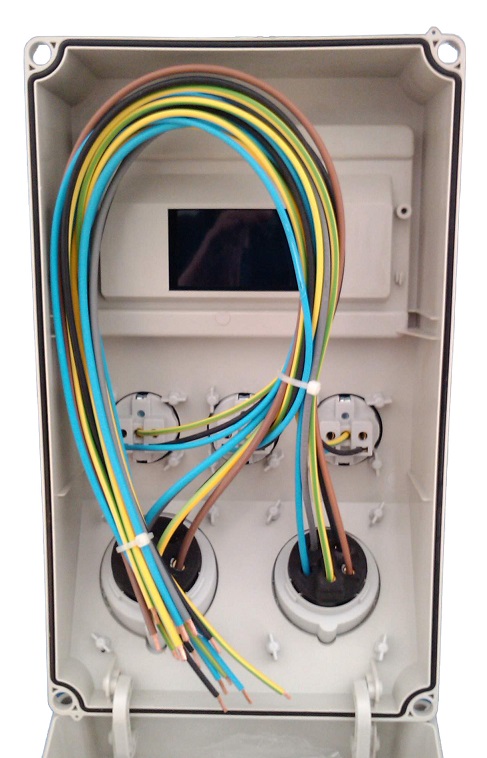

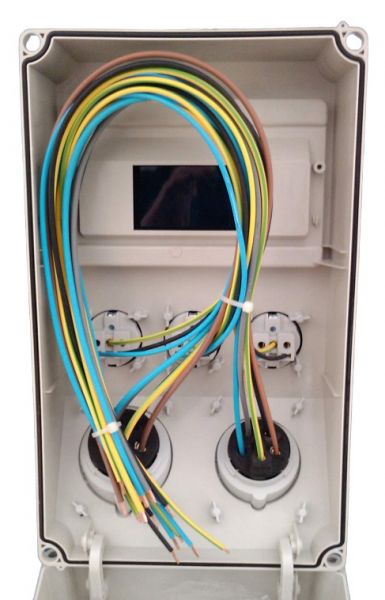

Wall distributor 41243 with pre-wired sockets - (on request also available ready for connection with fuses)
1x housing PRY 10002 (Max TE 9) 370x205mm IP67
3x protective contact socket 16A 230V IP44
1x CEE socket 16A 5p 400V IP44
1x CEE socket 32A 5p 400V IP44

P67 PRY wall distributor empty housing 178P/RR
Impact-resistant power distribution housing for FI, LS and fuses made of high-quality ABS plastic, VDE approved.
Transparent macrolon cover.
Temperature resistance: -25 to + 40 ºC.
Division: 1x9TE with DIN rail
Dimensions: HxWxD 369x222x130mm
Degree of protection:IP67
