Wall Mounting Enclosure HBT 1000 x 600 x 250 RAL7035 IP66 single door

Product No.:: SWG10006025
Shipping time:: ca. 15 -25 WD (abroad may vary)
Stock:: pieces
Weight:: 39 kg per piece

214,91 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

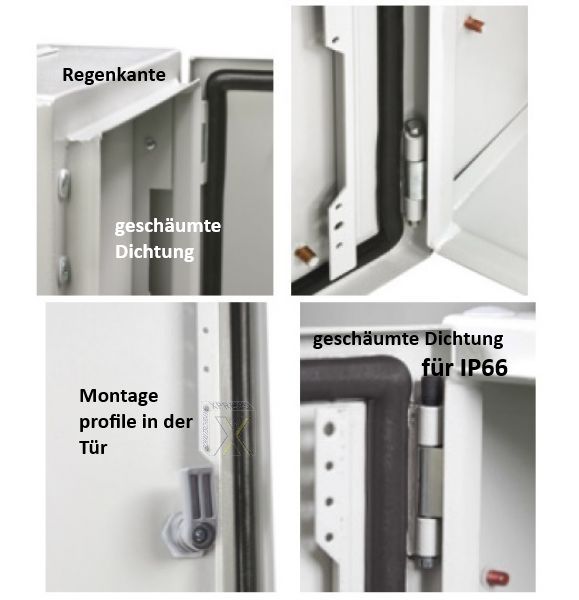

Sheet Steel Wall-Mounted Control Cabinet, 1-Door, IP66 (HBT) 1000x600x250 mm, Light Gray RAL 7035 (BHT 600x1000x250)
with a galvanized mounting plate and a removable flange plate for cable entry.
The wall-mounted control cabinet enclosures are made of high-quality, cold-rolled sheet steel with a thickness of up to 2 mm
and feature a hardened surface—powder coating (epoxy-PE) in RAL 7035.

The enclosures are individually packaged and come with a mounting plate and accessories.
Locking mechanism: 5 mm DIN-DDB (1 lock for heights up to 400 mm, 2 locks for heights up to 800 mm,
3-point bar lock for heights of 1000 mm and above)
Mounting plates: For enclosures up to 700 mm high, they are supplied unmounted; for heights of 800 mm and above, they are mounted inside the enclosure.
Accessories: 4 sealing plugs, grounding labels, keys, cable flange plate with screws, installation instructions.
