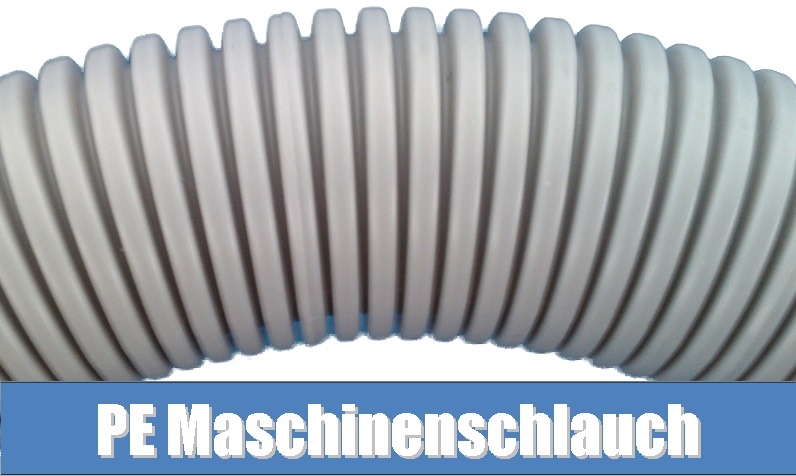

PE corrugated conduit NW29 light gray as flexible cable conduit
PE corrugated conduit NW29 (I-Ø 28.9mm - A-Ø 34 mm) light gray flexible & bendable for use as a flexible and movable cable conduit for loosely laid individual cables & lines on machines and assemblies, in control cabinets or other applications with flexible cable protection requirements.
Corrugated cable protection conduit made of LDPE for a (continuous) temperature range up to 80°C e.g.
as protection for the supply line from the operating housing to the machine
Design: closed / unslotted
Color: black, gray, light gray
Material: Polyethylene (LD-PE) Temperature range: 3000 h: -40°C to 80°C / 240 h: -40°C to 105°C
Flame retardancy:
• UL 94: HB
• according to FMVSS 302: < 100 mm/min.
Color(s)/Versions:
• Black, gray, others upon request
• Lengths upon request
Properties:
• High cold impact strength and
elongation at break
• High toughness
• Resistant to fatigue bending
• Very good chemical resistance
• Acid-resistant
• Very flexible
Areas of application include switchgear cabinet construction, household appliances, general electrical engineering, and indoor heating and air conditioning technology
Corrugated cable protection conduit made of LDPE for a (continuous) temperature range up to 80°C e.g.
as protection for the supply line from the operating housing to the machine
Design: closed / unslotted
Color: black, gray, light gray
Material: Polyethylene (LD-PE) Temperature range: 3000 h: -40°C to 80°C / 240 h: -40°C to 105°C
Flame retardancy:
• UL 94: HB
• according to FMVSS 302: < 100 mm/min.
Color(s)/Versions:
• Black, gray, others upon request
• Lengths upon request
Properties:
• High cold impact strength and
elongation at break
• High toughness
• Resistant to fatigue bending
• Very good chemical resistance
• Acid-resistant
• Very flexible
Areas of application include switchgear cabinet construction, household appliances, general electrical engineering, and indoor heating and air conditioning technology
