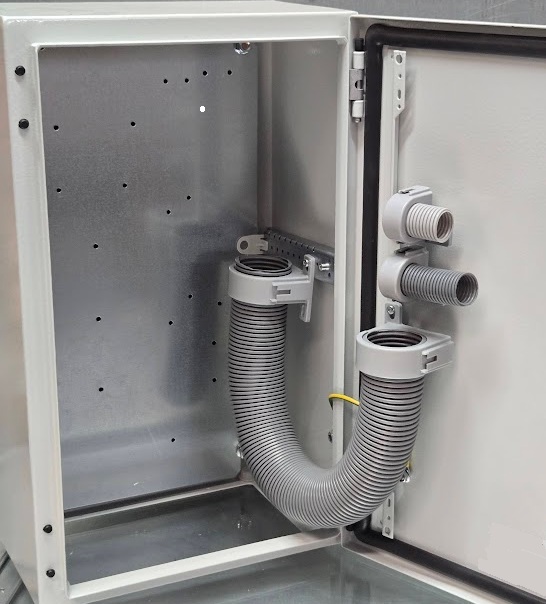

NW37 EVA cable protection tubing with very high flexibility and small bend radii for use in control cabinets. The tubing for cable routing in control cabinets!
Available in sizes NW 23, 29, 36/37, 48, and 50 with matching corrugated tube holders!
The corrugated tube for control cabinet, machine, and plant construction for static applications, made of high-quality polyethylene with excellent flexibility for light mechanical stress
| Refined Profile & nbsp; |
|
Ø ID |
|
Weight |
VPE |
| |
Light Gray |
mm |
mm |
mm |
Kg/100m |
in Meter |
| |
NW 23 |
28,3 |
23,2 |
59 |
9,0 |
10 |
| |
NW 29 |
34,5 |
29,0 |
67 |
13,5 |
10 |
| |
NW 37 |
42,2 |
36,0 |
76 |
15,0 |
10 |
| |
NW 50 |
54,5 |
47,7 |
92 |
21,8 |
10 |

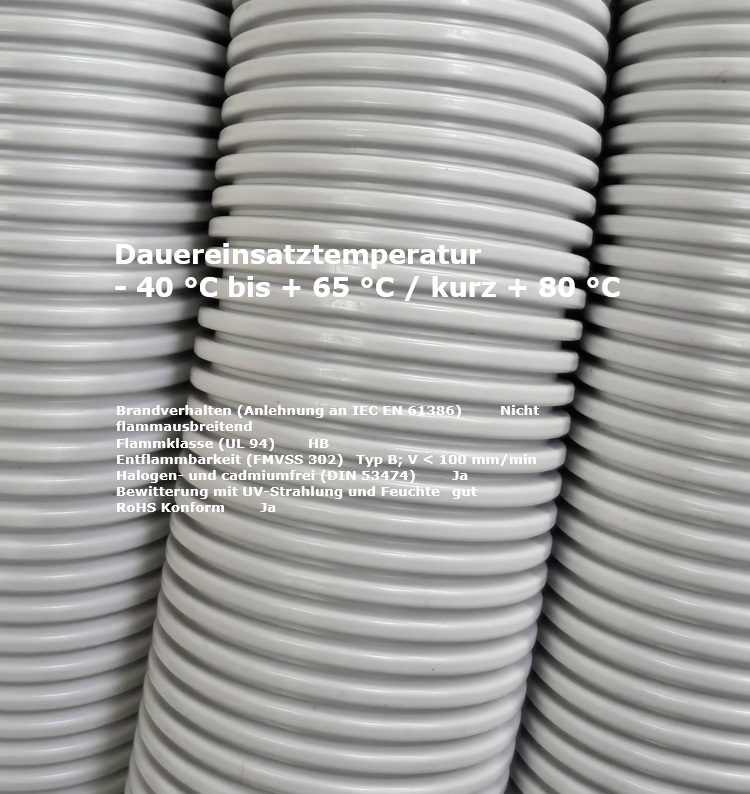

Properties / Technical Data
Continuous operating temperature: -40 °C to +65 °C
Short-term operating temperature: +80 °C
Peak compressive strength (based on IEC EN 61386) > 200 N/100 mm
Cyclic bending strength (based on IEC EN 61386) > 4,000 cycles
Impact resistance (DIN 53453) No fracture
Notched impact strength (DIN 53453) No fracture
Fire behavior (based on IEC EN 61386) Non-flame-propagating
Flame class (UL 94) HB
Flammability (FMVSS 302) Type B; V < 100 mm/min
Halogen- and cadmium-free (DIN 53474) Yes
Good resistance to UV radiation and moisture
RoHS compliant Yes
Chemical resistance (in direct contact) Alcohol at 23 °C
Resistant Gasoline at 23 °C
“Note: This item is a standalone quality product and not an original accessory from Rittal GmbH & Co. KG. It is listed here solely as a guide to its functional classification.”
