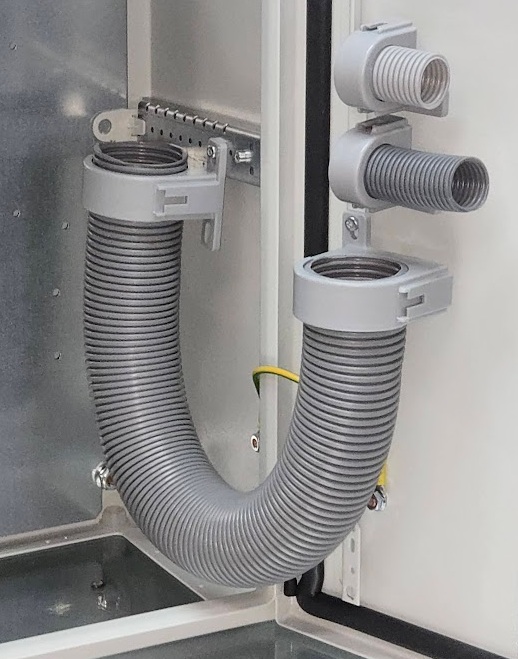

EVA Cable Conduit for Control Cabinets
Highly flexible EVA cable protection tubing with small bend radii for use in control cabinets.
Available in inner diameters 23-29-36/37-48/50 with matching corrugated tubing holders!
The corrugated tubing for control cabinet, machine, and plant construction for static applications, made of high-quality polyethylene with excellent flexibility for light mechanical stress
| Refined Profile & nbsp; |
|
Ø ID |
|
Weight | VPE | |||
| Light Gray | mm | mm | mm | Kg/100m | in Meter | |||
| NW 23 | 28,3 | 23,2 | 59 | 9,0 | 10 | |||
| NW 29 | 34,5 | 29,0 | 67 | 13,5 | 10 | |||
| NW 37 | 42,2 | 36,0 | 76 | 15,0 | 10 | |||
| NW 50 | 54,5 | 47,7 | 92 | 21,8 | 10 | |||
1 to 6 (from a total of 6)
Properties / Technical Data
Continuous operating temperature: -40 °C to +65 °C
Short-term operating temperature: +80 °C
Peak compressive strength (based on IEC EN 61386) > 200 N/100 mm
Cyclic bending strength (based on IEC EN 61386) > 4,000 cycles
Impact resistance (DIN 53453) No fracture
Notched impact strength (DIN 53453) No fracture
Fire behavior (based on IEC EN 61386) Non-flame-propagating
Flame class (UL 94) HB
Flammability (FMVSS 302) Type B; V < 100 mm/min
Halogen- and cadmium-free (DIN 53474) Yes
Good resistance to UV radiation and moisture
RoHS compliant Yes
Chemical resistance (in direct contact) Alcohol at 23 °C
Resistant Gasoline at 23 °C
“Note: This item is a standalone quality product and not an original accessory from Rittal GmbH & Co. KG. It is listed here solely as a guide to its functional classification.”
