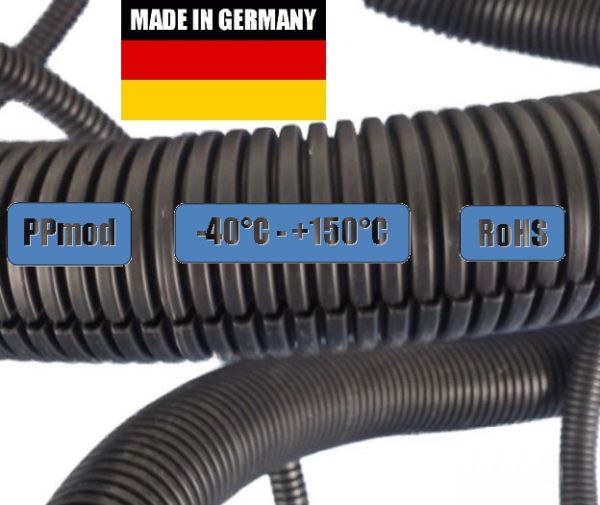

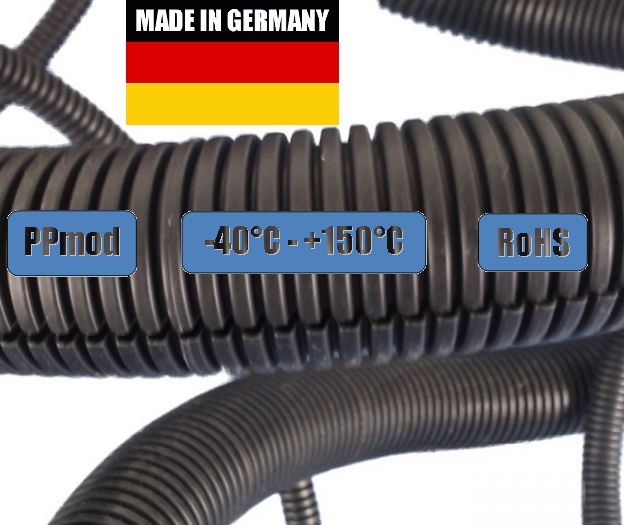

10m corrugated PPmod pipe as automotive cable protection

10m corrugated PPmod pipe as automotive cable protection - We offer our most popular corrugated pipe quality in all nominal widths, also in practical10m rings
Tube ondulé PPmod de 10m comme protection de câble automobile - Nous proposons notre qualité de tuyau ondulé la plus populaire dans tous les diamètres nominaux, également en rouleaux pratiques de 10m.
Tubo corrugado PPmod de 10m como protección para cables de automóviles - Ofrecemos nuestra calidad de tubo corrugado más popular en todos los diámetros nominales, también en prácticos rollos de 10m.
Tubo corrugato PPmod da 10m come protezione per cavi automobilistici - La nostra qualità di tubi corrugati più apprezzata è disponibile in tutti i diametri nominali anche in pratici rotoli da 10m.
Longitudinal slot remains largely closed even after installation !!!
This high quality corrugated tube is suitable for the protection of subsequently laid cables in the car interior and bodywork
e.g. when installing audio, video, hi-fi equipment
This protective tube is characterized by
+ the possibility of subsequently pulling in additional cables
+ a temperature resistance up to 150°C/500h
+ as an alternative to winding tape for cable harnesses
+ a good flexibility
Material properties:
Material: modified polypropylene
temperature range: 3000 h: -40°C to 135°C / 500 h: -40°C to 150°C
Flame retardant: UL 94: V2 / according to FMVSS 302: self-extinguishing
Product properties: High toughness / resistant to flexural fatigue / very high low-temperature impact strength / UV-resistant
Color(s)/Types: Black - slit and closed
Fields of application: Automotive interior, body and engine.
The filling level should be max. approx. 80% of the ID!
Slight deviations possible due to manufacturer.

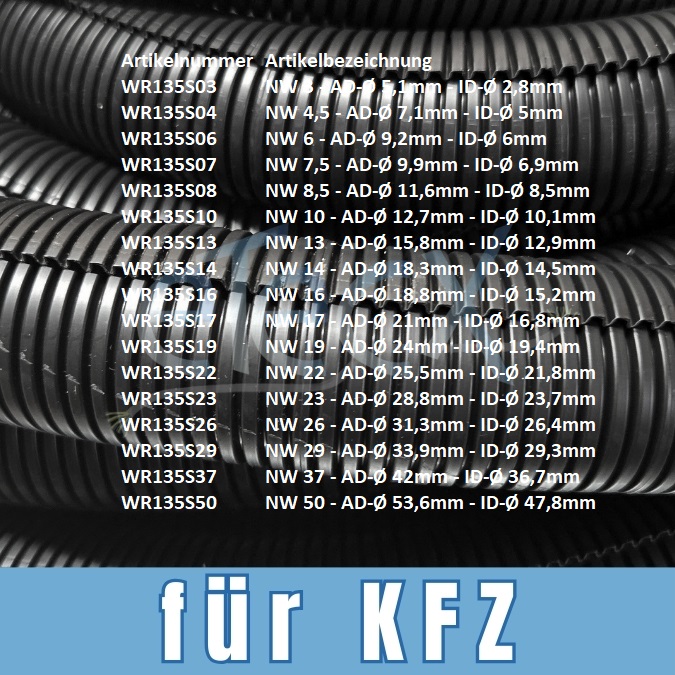

WR135S03 Corrugated pipe PPmod NW 3 black slotted NW3 = ID Ø 2.8 mm - ADØ 5.1 mm
WR135S04 Corrugated tube PPmod NW 4.5 black slotted NW4.5 = ID Ø 5 mm - ADØ 7.1 mm
WR135S06 Corrugated pipe PPmod NW 6 black slotted NW6 = ID Ø 6 mm - ADØ 9.2 mm
WR135S07    Corrugated pipe PPmod NW 7.5 black slotted NW7.5 = ID Ø 6.9 mm - ADØ 9.9 mm
WR135S08    Corrugated pipe PPmod NW 8.5 black slotted NW8.5 = ID Ø 8.5 mm - ADØ 11.6 mm
WR135S10    Corrugated pipe PPmod NW 10 black slotted NW10 = ID Ø 10.1 mm - ADØ 12.7 mm
WR135S13 Corrugated pipe PPmod NW 13 black slotted NW13 = ID Ø 12.9 mm - ADØ 15.8 mm
WR135S17 Corrugated pipe PPmod NW 17 black slotted NW17 = ID Ø 16.8 mm - ADØ 21 mm
WR135S19 Corrugated pipe PPmod NW 19 black slotted NW19 = ID Ø 19.4 mm - ADØ 24 mm
WR135S22 Corrugated pipe PPmod NW 22 black slotted NW22 = ID Ø 21.8 mm - ADØ 25.5 mm
WR135S26 Corrugated pipe PPmod NW 26 black slotted NW26 = ID Ø 26.4 mm - ADØ 31.3 mm
WR135S29 Corrugated pipe PPmod NW 29 black slotted NW29 = ID Ø 29.3 mm - ADØ 33.9 mm
WR135S37 Corrugated pipe PPmod NW 37 black slotted NW37 = ID Ø 36.7 mm - ADØ 42 mm
WR135S50    Corrugated pipe PPmod NW 50 black slotted NW50 = ID Ø 47.8 mm - ADØ 53.6 mm
